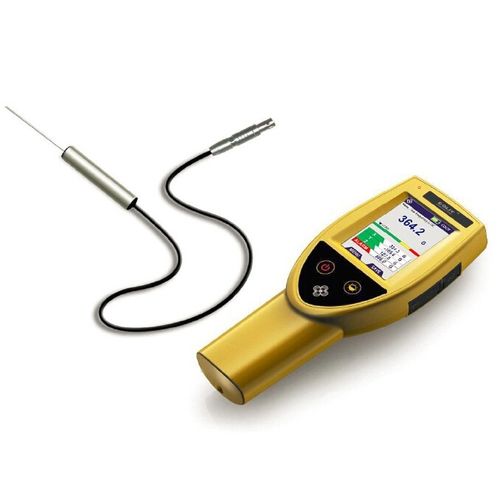

Hand-held gaussmeter G93

digital

With many years of magnetic field testing expérience, G93 Handheld 3-Axis Gaussmeter, introduced by COLIY, is designed for scientific research institutions, universities, laboratories, industry. manufacturing and other users. G93 Gaussmeter boasts with an industrial class 3.2 inches touch panel display that enables customers’ instantaneous and simultaneous measurement results (Max/ Min/ Peak/ Hold/ Alarm/ Polarity, XY2 axis and vector of Magnetic Flux Density, and Trend Graph etc.). There is a unique feature for 3-axis probe of G93: With the MEMS manufacturing technology, 3-axis probe provides very high spatial resolution (magnetic field sensitive volume 0.1 x 0.1 x 0.1mm3), orthogonality error is less than 0.1°, and the thickness of 3-axis probe is only 2mm. Gaussmeter G93 could fulfill many kinds of applications of institutes, universities and high technology enterprises. Gaussmeter G93 could be equipped with different kinds of 3-Axis Probes: Standard Probe, Wide-range Probe and Température sensor-contained Probe. Its measurement range spans 107 from 1pT (0.01G) to 20T (200kG) with a basic accuracy of 1% or 0.5%. Gaussmeter G93 with standard probe allows measurements up to 30kG(3T), and the frequency response of DO 1kHz; Gaussmeter G93 with wide-range probe, suitable for superconducting magnet, allows measurements up to 200kG(20T), and the frequency response of DO 1kHz; Température sensor-contained probes(probes with built-in température sensor) hâve the function of température compensation; température sensor-contained probes are strongly recommended for better précision and stability when the température changes.
