Electrical field probe ECS-3

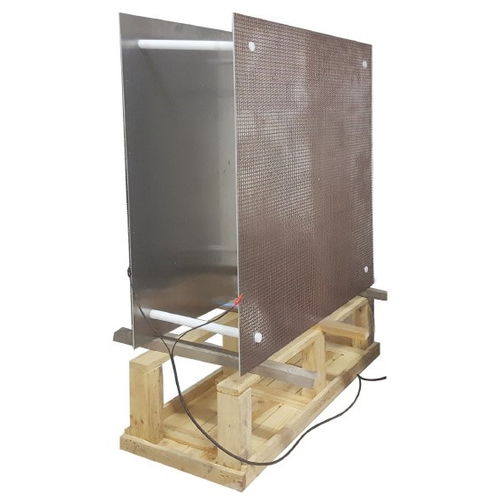

Description AC electric field calibration system ECS-3 is designed by Coliy Technology GmbH. AC electric field from 30Hz to 100kHz can be calibrated continuously by ECS-3. The max output voltage of the power amplifier is up to 2500V(RMS), and the distance between two parallel plates can be adjusted between 40cm~80cm in order to meet the needs of different users, the AC electric field intensity is up to 6kV/m within the range. The application of the AC power amplifier designed by Coliy solves the problem of the AC voltage amplification and continuous adjustable completely. The users can obtain better stability and safety in the process of use with the application of the overload protection system. Application AC electric field calibration system ECS-3 can be widely used in metrology institute, testing agency, scientific research, labouratory, EMC and other departments. Features - Broadband communication signal source up to 30MHz - 30Hz~100kHz AC power amplifier, continuous adjustable - AC electric field intensity up to 6kV/m - The homogeneity of the electric field less than 0.2% - 1.2m×1.2m parallel metal plates - The distance between two parallel plates can be adjusted between 40cm~80cm
