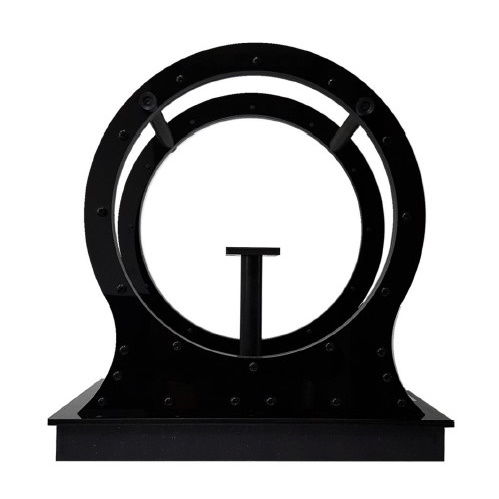

Magnetic Helmholtz coil MCS-3

ACmeasuring

Description AC magnetic field calibration system MCS-3 is designed by Coliy Technology GmbH. AC magnetic field from 1Hz to 100kHz can be calibrated continuously by MCS-3. The intensity of the magnetic field generated by the AC low-resistance helmholtz coil is up to 160A/m, the homogeneity of the magnetic field is less than 1% in the 100×100×100mm3 central zone, the accuracy is less than 0.5%. The application of the AC power amplifier designed by Coliy solved the problem of the AC current amplification and continuous adjustable completely. The users can obtain better stability and safety in the process of use with the application of the overload protection system. Application AC magnetic field calibration system MCS-3 can be widely used in metrology institute, testing agency, scientific research, labouratory, EMC and other departments. Features - Broadband communication signal source up to 30MHz - 1Hz~100kHz AC power amplifier, continuous adjustable - AC low-resistance helmholtz coil - The intensity of the AC magnetic field up to 160A/m - The accuracy less than 0.5% - The homogeneity of the magnetic field less than 1% in the 100×100×100mm3 central zone - Multimeter, measuring AC current , precision 0.3%
