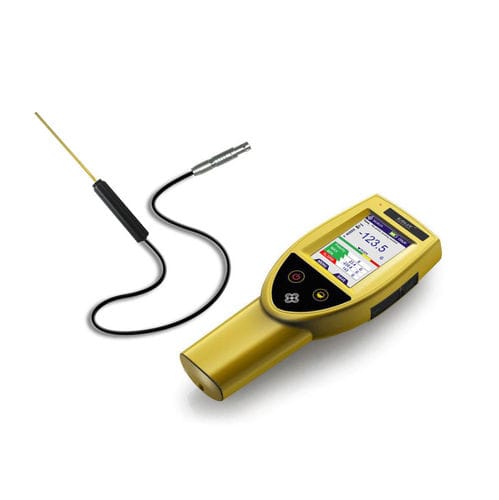

Hand-held gaussmeter G9 series

digital

G91,G92 Handheld Gaussmeter Description: The G91 and G92 Handheld Gaussmeters, introduced by COLIY, are the single-axis handheld Gaussmeters, designed for scientific research institutions, universities, laboratories, industry, manufacturing and other users. G91 and G92 Gaussmeters boast with an industrial class 3.2 inches touch panel display that enables customers' instantaneous and simultaneous measurement results (Max/ Min/ Peak/ Hold/ Alarm/ Polarity, Magnetic Flux Density, and a Trend Graph etc.). G92 Gaussmeter has the world's widest frequency response range from DC to 100 kHz. Gaussmeter G91 allows measurements up to 30kG (3T) with a basic accuracy of 2%, the resolution of 0.2G (20pT), and the frequency response of DC- 10 kHz. Gaussmeter G91 could be equipped with Axial Probe, Transverse Probe and Ultra-thin Probe (thickness of 0.5mm). Gaussmeter G92 allows measurements up to 100kG (10T) with a basic accuracy of 1% and the resolution of 0.1 G (10pT), the frequency response of DC- 100 kHz, and low zéro drift. Gaussmeter G92P’s sampling rate is up to 2000kSPS, which permits capture of positive and négative magnetic field puises as narrow as 200 ps in width. It is suitable for most magnetizers and other fast puise applications. G92 could be equipped with much more different kinds of Hall Probes: Transverse Probe, Axial Probe, Micro-axial Probe (Diameter S2mm), Wide-range Probe (10T), High-frequency Probe (100kHz), High-Temp. Probe (up to +160°C), Ultra-thin Probe (thickness of 0.5mm) and Température sensor-contained Probe.
