USB gaussmeter G401

digital

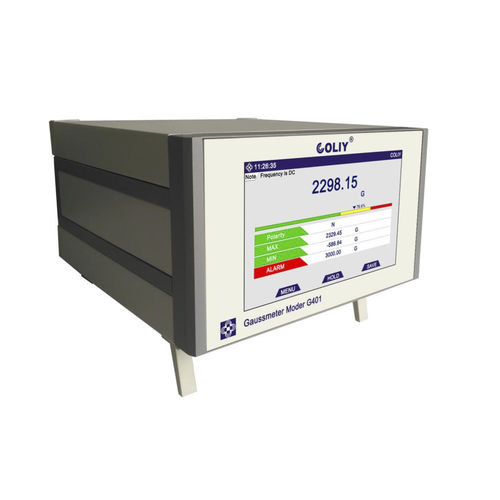

G401 High Precision Single-Axis Gaussmeter Description: COLIV Model G401 is a high-precision desktop single-axis hall gaussmeter, which provides advanced functionality and performance to meet the demanding needs of the industry. G401 is suitable for scientific research institutions, universities, laboratories, industry, manufacturing and other users. G401 Gaussmeter boasts with an industrial class 7 inches touch panel display that enables customers' instantaneous and simultaneous measurement results (Max/ Min/ Peak/ Hold/ Alarm/ Polarity, Magnetic Flux Density, and a Trend Graph etc.). In addition, G401 can be powered by a mobile power supply (5V) USB interface to meet the needs of outdoor measurement of magnetic fields. G401 allows measurements up to 200kG (20T) with a basic accuracy of 0.04%, the resolution of up to 0.01 G (1pT), and the frequency response of DC- 30kHz. Gaussmeter G401 could be equipped with different kinds of Hall Probes: Standard Transverse Probe, Standard Axial Probe, Wide-range Probe (20T) and Température sensor-contained Probe. The température coefficient of ordinary probes is 300ppm/‘C, but température sensor-contained probes (probes with built-in température sensor) hâve the function of température compensation, so température sensor-contained probes are strongly recommended for better précision and stability when the température changes. Gaussmeter G401 has passed the CE certification and EMC (Electromagnetic Compatibility) test.
