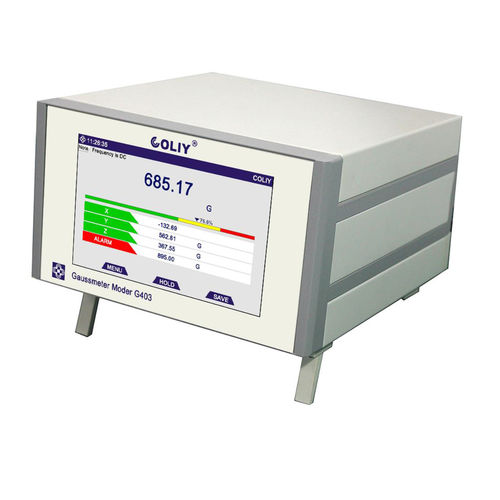

Digital gaussmeter G403

COLIY Model G403 is a high-precision desktop 3-Axis hall gaussmeter, which provides advanced functionality and performance to meet the demanding needs of the industry. G403 is suitable for scientific research institutions, universities, laboratories, industry, manufacturing and other users. G403 Gaussmeter boasts with an industrial class 7 inches touch panel display that enables customers’ instantaneous and simultaneous measurement results (Max/ Min/ Peak/ Hold/ Alarm/ Polarity, XYZ axis and vector of Magnetic Flux Density, and a Trend Graph etc.). Gaussmeter G403’s 3-axis probe sensor provides very high spatial resolution (magnetic field sensitive volume of 0.1 x 0.1 x 0.1mm3) and orthogonality error is better than 0.1°, and the thickness of 3-axis probe is only 2mm. G403 could fulfill many kinds of applications of institutes, universities and high technology enterprises. Gaussmeter G403 could be equipped with different kinds of 3-Axis Probes: Standard Probe, Wide-range Probe and Température sensor-contained Probe. Its measurement range spans 107 from 1pT (0.01 G) to 20T (200kG) with a basic accuracy of 1%. Meanwhile, Gaussmeter G403 with standard probe allows measurements up to 30kG(3T) with the frequency response of DO 1kHz; Gaussmeter G403 with wide-range probe, suitable for superconducting magnet, allows measurements up to 200kG(20T) with the frequency response of DO 1kHz; Besides, the température coefficient of ordinary probes is 500ppm/°C, but température sensor-contained probes
