Magnetometer GF601

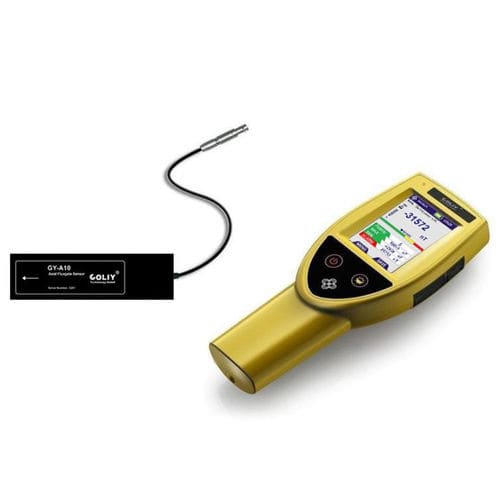

GF601 Single-Axis Fluxgate Magnetometer • - Finest Resolution 0.1 nT • - DC/AC Measurement Mode Switch Description: Single-axis Fluxgate Magnetometer GF601, made by COLIY, has the excellent ergonomie design with the latest electronic technology. and it's one of best choices to measure low-intensity magnetic field. This handheld fluxgate magnetometer can be used in geomagnetism détection, wrapped détection, traffic monitoring, measuring residual magnetism, low-intensity magnetic field measurement, etc. GF601 boasts with an industrial class 3.2 inches touch panel display that enables customers’ instantaneous and simultaneous measurement results [Max/ Min/ Peak/ Hold/ Alarm/ Polarity, Magnetic Flux Density, Trend Graph, etc. Magnetometer GF601 can be used to detect DC magnetic field in DC measurement mode and AC magnetic field in AC measurement mode respectively: GF601 allows DC measurements with a basic accuracy of 0.5%, resolution of 0.1 nT and AC measurement with a basic accuracy of 1% and frequency response range of DC- 1kHz. Magnetometer GF601 could be equipped with Transverse Probe or Axial Probe of different range: ±100pT and ±1000pT. Magnetometer GF601 has passed the CE certification and EMC (Electromagnetic Compatibility) test.
