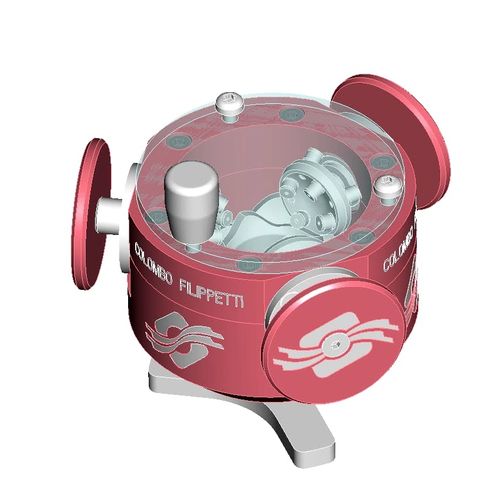

Cam indexer

rotarycycloidal

The Spheroconical indexer is a development of the Spheroconical cam. The follower’s wheel axis and the follower’s axis converges in the center of the sphere, as the Spheroconical cam. In the video below the basic configuration of a Spheroconical indexer with 90 degrees axis is shown. The Spheroconical indexer can be used to transfer objects between two transfer lines and to reorient them up to 360 degrees. The video below shows a Spheroconical indexer with 3 outputs: two outputs rotate of 90 degrees and the third of 180 degrees. The Spheroconical indexer provides: ▪better performance in reduced space ▪increased productivity ▪no backlash during pick and drop and precise repeatability ▪improved reliability ▪boxed solutions with internal sealed lubrication, dust-free Customization The Spheroconical indexer can be configured with many follower wheels, motion laws and freedom to define the pick and drop points.
