Cam indexer Tandem CF3
rotaryoscillatingintermittent

Cam indexer - Tandem CF3 - COLOMBO FILIPPETTI - rotary / oscillating / intermittent
Cam indexer - Tandem CF3 - COLOMBO FILIPPETTI - rotary / oscillating / intermittent
Add to favorites
Compare this product


Characteristics

Motion
rotary, oscillating, intermittent
Type
cam

Description

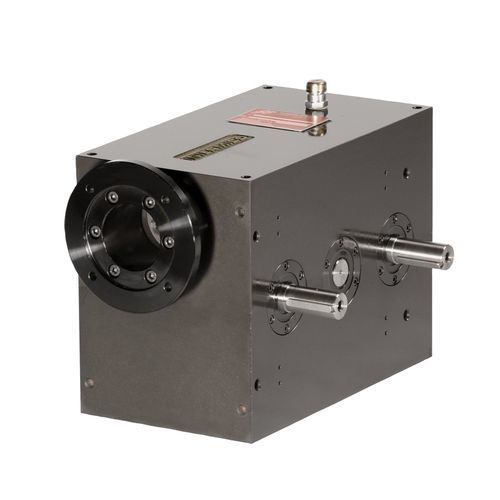

TANDEM CF3 by COLOMBO FILIPPETTI spa is a mechanism combining, inside one box, two groups of complementary profile cams and roller followers of the CF3 series. The uniform rotary motion of the single input shaft is transformed into two intermittent rotary motions, one motion for each output shaft. The output shafts can be unidirectional indexing or bi-directional oscillating. All motions are perfectly phased and synchronized.
