Marking press PR series

impact

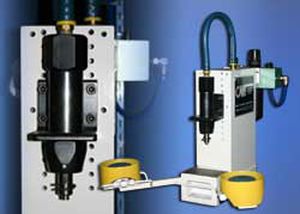

The PR88 metal marking press is a rugged cylinder with a built in stamp holder at the rod end. The PR88 delivers a powerful impact blow of up to 3 tons at 80psi. The model PR88 is a dependable marking machine at a low investment cost. The PR98 impact press is a heavy duty impact marking cylinder that is similar to the model PR88. However, the PR98 delivers a much greater impact force (up to 8 tons at 80psi). Both models feature patented shock absorbing bumpers at both ends of the stroke. This prevents damage to the marker when bottoming out on the forward stroke and reducing the shock on the return stroke. They also have a keyed non-rotating rod and 2.5" of stroke.: • PR88 Features: • 3 standard rod styles to hold the stamps offer multi-character OA or OAS38, and singel character OB • 2 different air port locations: standard end port or side port for restricted space installations • Standard systme requires lubricated air • Dual, anti-tie down, anti-repeat palm buttons • Heavy duty, steel bench top frame PR98 Features: • 3 standard rod styles to hold the stamps offer multi-character OA or OAS75, and single character OB • 2 different air port locations: standard end port or side port for restricted space installations • Standard system requires lubricated air • Dual, anti-tie down, anti-repeat palm buttons • Heavy duty, steel bench top frame Technical Specifications PR88: Recommended Air Hose:  3/8” I.D. minimum Recommended Air Valve:  3/8” 3-way or 4-way solenoid valve Operating Pressure:  20 to 80psi Max. Marking Pressure:  6000lbs (at 80psi) Stamp Capacities Rod Style “B” (1) Pc  CM8X  round insert can mark up to a 1/4” character.
