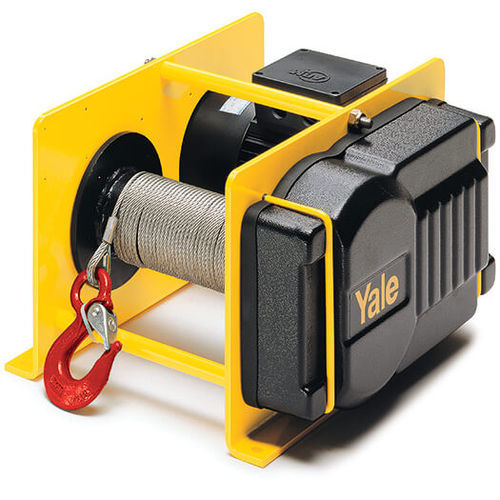

Electric winch RPE series

wire ropeliftingpulling

Winches series RPE are designed for performance, efficiency and safety and offer many advantages and options. RPE‘s compact, practical cube design and universal rope lead-offs allow individual applications in almost any position for lifting and pulling loads. The winches are designed to DIN 15020, classification 1 Bm/M3 and the EC machinery directives. Every winch is factory tested with overload. The units are supplied with a test certificate showing the unit‘s serial-no. and an operating instructions manual which contains a manufacturer‘s declaration. Features • Compact dimensions due to internal brake motor. • Standard operating voltages of 400 V/230 V, 3-ph, 50 Hz or 230 V, 1-ph, 50 Hz • Adjustable slip clutch to protect the winch from overloading standard for RPE 10-6 and RPE 20-6. • Spur gear transmission with helical first gear ensures smooth motion. Lubricated by grease and can, therefore, be used in any position. • Spring pressure disc brake incorporated in the motor holds the load secure even in the event of a power failure. • Plain rope drum standard.The rope is secured to the drum in a recess so that the rope can be wound onto the drum in several layers without damage. • 42 V low voltage control (incl. push-button with emergency-stop and 2 m control cable) or without control. Options • Different drum designs (XL) extended to accommodate longer rope. • Machined grooved drums for better rope reeling. • Drums with separation web and extra rope outlets for working with two or more ropes. • Geared limit switches to limit rope motion in both directions (in combination with 42 V low voltage control).
