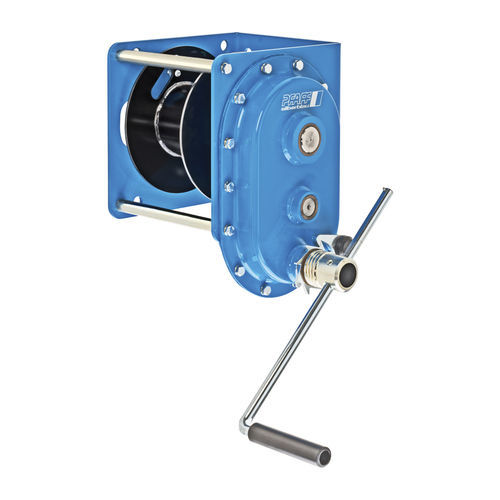

Manual winch MWS serieswire ropeliftingcompact
Add to favorites
Compare this product
Characteristics
- Operation
- manual
- Type
- wire rope
- Application
- lifting
- Other characteristics
- compact, gear
- Capacity
Min.: 150 kg
(330.7 lb)Max.: 1,500 kg
(3,306.9 lb)- Cable diameter
4 mm, 6 mm, 8 mm, 10 mm
(0.16 in, 0.24 in, 0.31 in, 0.39 in)- Cable length
Min.: 800 mm
(31.5 in)Max.: 2,700 mm
(106.3 in)- Weight
Min.: 4 kg
(8.818 lb)Max.: 27.5 kg
(60.627 lb)
Description
For the operation where no electricity is available or in a dirty environment. Recommended rope diameter according to EN 12385 FE-znk 1770 sZ-spa. The rope is not included in the delivery.
Features
• Enclosed gear drive for protection of internal parts, even under tough working conditions.
• Spur gears on roller bearings, rope drum on plain bearings.
• Compact design.
• Easy and quick mounting onto walls, poles etc.
• They have a self-locking, anti-kickback and adjustable crank handle for fast lifting of smaller loads, resulting in lowest possible handle effort and rapid winding of the rope.
• Automatic load pressure brake for safe holding and extremely sensitive lowering of the load. Unintentional brake release is prevented even with swinging loads.
• They are suitable for operation in ambient temperatures of - 10 °C up to + 50 °C.
Option
• Corrosion resistant version.
