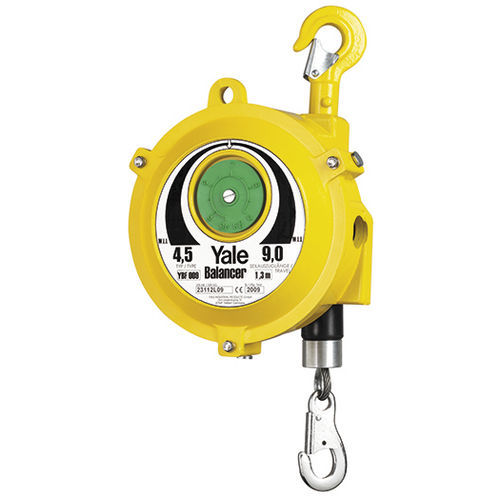

Spring tool balancer YBF series

suspensionvertical

Spring balancers model YBF Capacity 0.5 - 200 kg Spring balancers with extended rope length model YBF-L Capacity 1.5 - 130 kg Spring balancers are used to relieve the operator from the weight of hand-tools. By using a tapered rope drum the weight of the attached load is compensated, loads up to 200 kg can be moved effortlessly in vertical axis. Features Spring balancers model YBF are designed in accordance with DIN 15112. The housing is manufactured from high-tensile aluminium pressure die casting for maximum resistance to impact. Manual drum lock for an easy exchange of rope or for changing the attached load. The special spring-assembly inside the balancer guarantees a consistent counterbalance throughout the complete working range. Easy exchange of wire rope. A small slot in the body facilitates the removal and re-installation of the rope without any need to disassemble the unit. Spring assemblies as separate units in a closed steel housing for improved handling during assembly and disassembly. Reduced risk of injuries. Rope guide made of wear-resistant nylon for reduced wear of rope and body. Lifetime of the spring balancer is increased. The rope guide can be removed and installed on site without disassembling the rope. Load indicator allows easy reading of the capacity set. Upper and lower suspension eyes are provided for the attachment of secondary safety chains. Providing additional safety and preventing the spring balancer and load from falling accidentally. Applications Spot-welding guns, riveting-machines, slaughterhouse equipment, multiple nut-runners etc.
