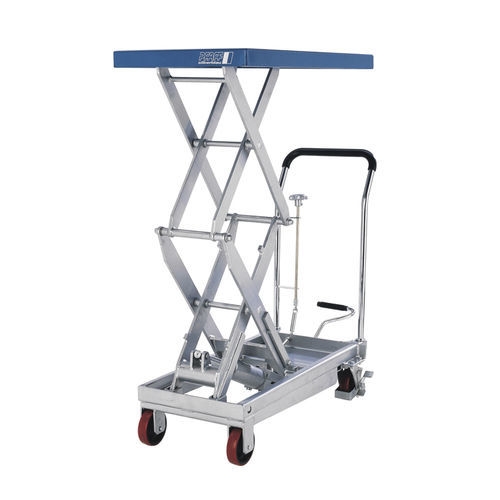

Double-scissor lift table HX-D 350manualmobile
Add to favorites
Compare this product
Characteristics
- Technology
- double-scissor
- Operation
- manual
- Type
- mobile
- Capacity
350 kg
(771.6 lb)- Lowered height
370 mm
(15 in)- Lifting height
1,300 mm
(51 in)- Stroke
930 mm
(36.61 in)- Tray length
910 mm
(35.83 in)- Tray width
500 mm
(19.69 in)- Weight
136 kg
(299.83 lb)
Description
For the independant lifting and supplying of light up to medium loads within a warehouse environment.
Features
• Hydraulic lifting of the load with foot pedal.
• Lowering speed can be finely metered for sensitive lowering of the load.
• Ergonomic handlebar for easy operation.
• Steering roller with brake for safe parking of the hand stacker.
• Robust construction with hard chromium plated piston and pressure relief valve.
• According to DIN EN 1570-1, DIN EN ISO 3691-5.
