Rotary drilling rig MC 2 Dhydraulic
Add to favorites
Compare this product
Characteristics
- Drilling unit
- rotary
- Other characteristics
- hydraulic
- Motor power
33 kW
(44.87 hp)
Description

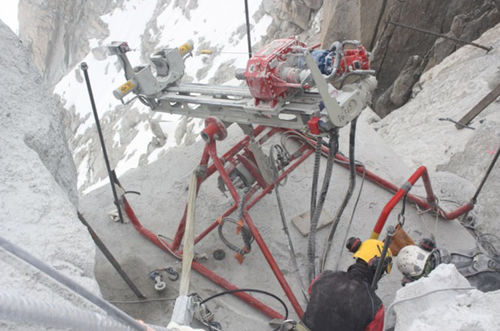

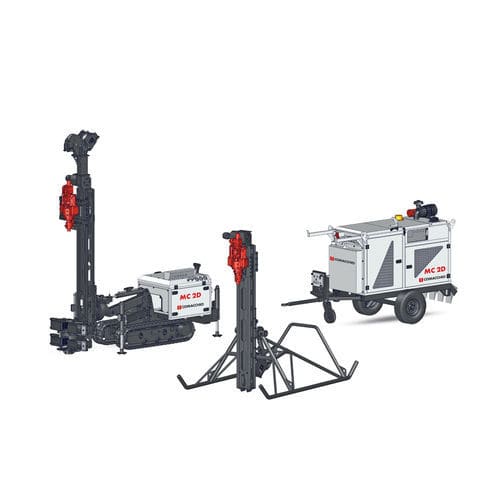

The MC 2D is a light and powerful modular hydraulic drill unit. The MC 2D can be mounted on scaffolds, crawlers, skid frames or other special supports and can utilize 2” to 4” D.T.H. hammers, augers and coring equipment.
Max. width - 750 - 1.560 mm - 2' 6" - 5' 1"
Weight - 600-1500 + 1000 kg - 1,300-3,300 + 2,200 lbs
Mast Feed - 1.250 - 2.050 mm - 4' 1" - 6' 8"
Feed Force - 1.200 daN - 2,697 lbs
Retract Force - 1.200 daN - 2,697 lbs
Rotary Torque - 200 - 480 daNm - 1,475 - 3,540 lb*ft
Rotary Speed Range - 80 - 580 rpm
Clamp Range - 45 - 185 mm - 1" 3/4 - 7" 5/16
Catalogs
MC 2D
1 Pages
