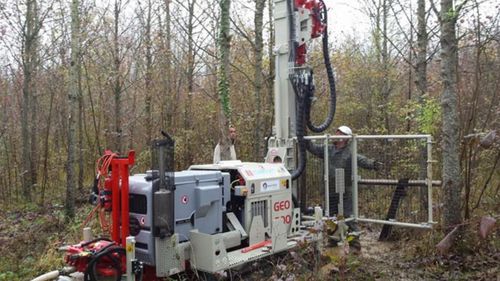

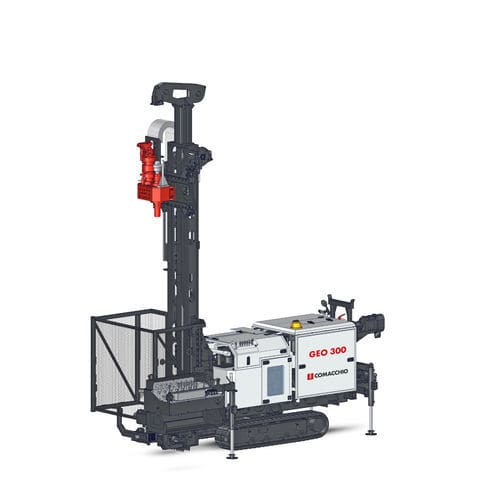

Crawler drilling rig GEO 300rotary
Add to favorites
Compare this product
Characteristics
- Mobility
- crawler
- Drilling unit
- rotary
- Machine weight
3,200 kg, 3,700 kg
(7,054.8 lb, 8,157.1 lb)- Motor power
44.7 kW, 55 kW
(60.78 hp, 74.78 hp)
Description
Max Width - 900 - 1.400 mm - 2.9 - 4.5 ft
Mast Feed - 1.400 - 2.500 mm - 4.6 - 8.2 ft
Feed Force - 2.500 - 5.000 daN - 5,620 - 11,240 lbs
Retract Force - 2.500 - 5.000 daN - 5,620 - 11,240 lbs
Rotary Torque - 200 - 1.100 daNm - 1,475 - 8,113 lb*ft
Rotary Speed Range - 55 - 580 rpm
Clamp Range - 45 - 220 mm - 1.8 - 8.7 in
