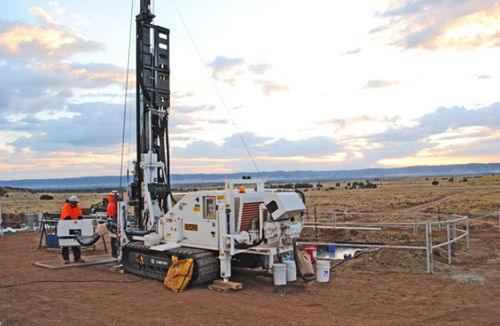

Crawler drilling rig CX 1010rotary
Add to favorites
Compare this product
Characteristics
- Mobility
- crawler
- Drilling unit
- rotary
- Machine weight
9.5 t, 11.5 t
(10.5 us ton, 12.7 us ton)- Motor power
115 kW, 119 kW
(156.36 hp, 161.79 hp)
Description
Max Width - 1.600 - 2.300 mm - 5.3 - 7.5 ft
Mast Feed - 4.000 mm - 13.1 ft
Feed Force - 6.500 daN - 14,612 lbs
Retract Force - 9.500 daN - 21,360 lbs
Rotary Torque - 2.300 - 13.000 Nm - 1,700 - 9,600 lb*ft
Rotary Speed Range - 220 - 1500 rpm
Clamp Range - 45 - 320 mm - 1.8 - 12.6 in
