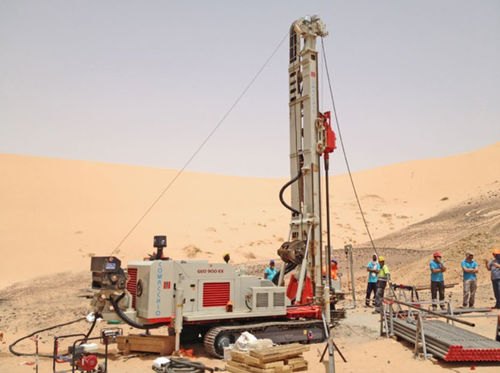

Crawler drilling rig CX 1520rotary
Add to favorites
Compare this product
Characteristics
- Mobility
- crawler
- Drilling unit
- rotary
- Machine weight
16 t, 18 t
(17.6 us ton, 19.8 us ton)- Motor power
126 kW, 160 kW
(171.31 hp, 217.54 hp)
Description
Max Width - 2.000 - 2.400 mm - 6.6 - 7.9 ft
Mast Feed - 4.000 - 7.000 mm - 13.1 - 23 ft
Feed Force - 12.000 daN - 26,977 lbs
Retract Force - 20.000 daN - 44,962 lbs
Rotary Torque - 5.365 - 13.600 Nm - 3,960 - 10,030 lb*ft
Rotary Speed Range - 220 - 1250 rpm
Clamp Range - 45 - 360 mm - 1.8 - 14.2 in
