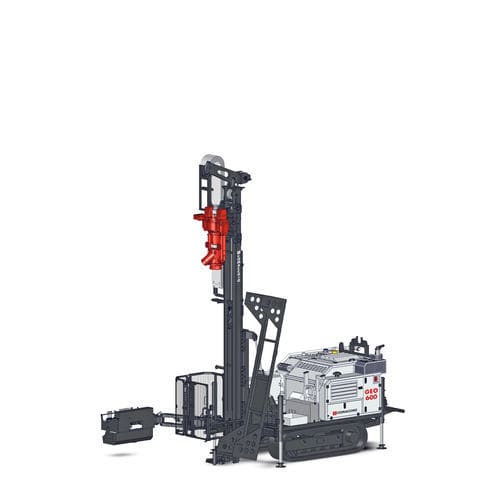

Crawler drilling rig GEO 600rotary
Add to favorites
Compare this product
Characteristics
- Mobility
- crawler
- Drilling unit
- rotary
- Machine weight
6.5 t, 8 t
(7.2 us ton, 8.8 us ton)- Motor power
55 kW, 74 kW
(74.78 hp, 100.61 hp)
Description
Max Width - 1.600 - 1.700 mm - 5.3 - 5.6 ft
Mast Feed - 3.500 mm - 11.5 ft
Feed Force - 4.500 daN - 10,116 lbs
Retract Force - 6.500 daN - 14,612 lbs
Rotary Torque - 450 - 1.400 daNm - 3,319 - 10,330 lb*ft
Rotary Speed Range - 55 - 980 rpm
Clamp Range - 45 - 325 mm - 1.8 - 12.8 in
