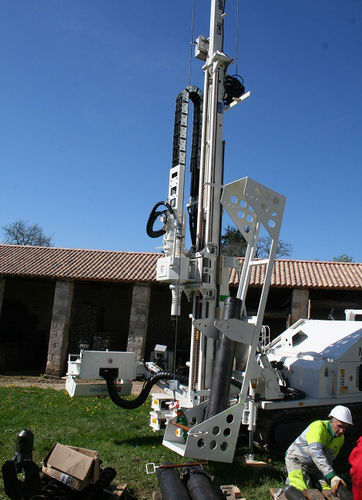

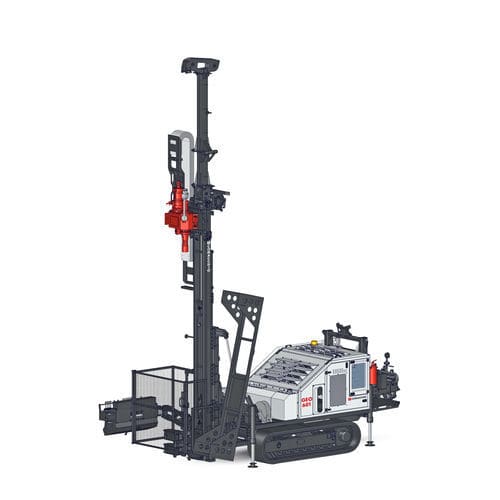

Crawler drilling rig GEO 601rotary
Add to favorites
Compare this product
Characteristics
- Mobility
- crawler
- Drilling unit
- rotary
- Machine weight
7 t, 9 t
(7.7 us ton, 9.9 us ton)- Motor power
86 kW, 100 kW
(116.93 hp, 135.96 hp)
Description
Max Width - 1.600 - 2.300 mm - 5.2 - 7.6 ft
Mast Feed - 3.500 mm - 11.5 ft
Feed Force - 4.500 daN - 10,116 lbs
Retract Force - 6.500 daN - 14,612 lbs
Rotary Torque - 450 - 2.400 daNm - 3,319 - 17,700 lb*ft
Rotary Speed Range - 57 - 980 rpm
Clamp Range - 45 - 325 mm - 1.8 - 12.8 in
Catalogs
Geotechnical equipment
16 Pages
