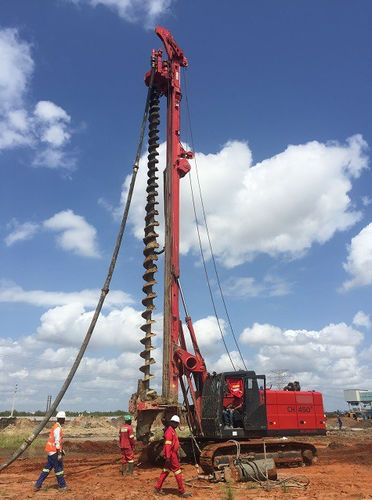

Rotary drilling rig CH 450 – CFA/WPDCUMMINSdiesel engine
Add to favorites
Compare this product
Characteristics
- Drilling unit
- rotary
- Engine model
- CUMMINS
- Other characteristics
- diesel engine
- Drilling diameter
1,000 mm
(39 in)- Drilling depth
21 m
(68'10" )- Machine weight
45,000 kg
(99,208 lb)- Motor power
201 kW
(273.28 hp)
Description
Diesel engine - Cummins QSB6.7 (EU Stage IIIA/Stage V - US EPA Tier 3 / Tier 4f)
Nominal max torque - 190 kNm - 140,000 lbf*ft
CFA/WPD (Quick Conversion CFA)
Max length of augers - 16 m - 50' 10"
Max length of auger extension - 7 m - 23'
Extraction force - 330 kN - 74,200 lbs
Crowd force on auger - 140 kN - 31,470 lbs
