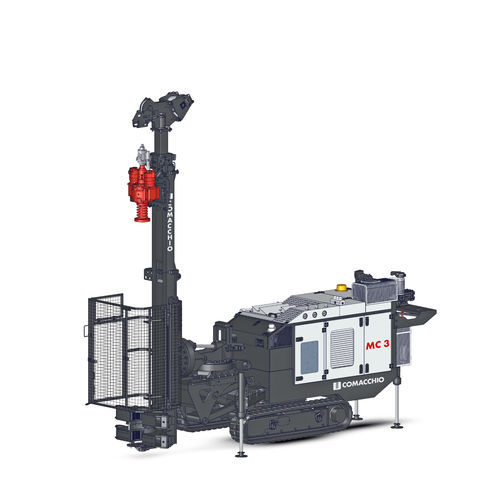

Crawler drilling rig MC 3
rotary

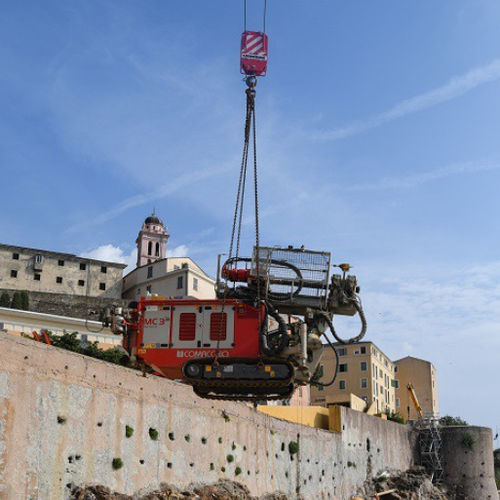

Crawler drilling rig - MC 3 - Comacchio - rotary
Crawler drilling rig - MC 3 - Comacchio - rotary
Crawler drilling rig - MC 3 - Comacchio - rotary - image - 2
Crawler drilling rig - MC 3 - Comacchio - rotary - image - 3
Crawler drilling rig - MC 3 - Comacchio - rotary - image - 4
Crawler drilling rig - MC 3 - Comacchio - rotary - image - 5
Crawler drilling rig - MC 3 - Comacchio - rotary - image - 6
Add to favorites
Compare this product


Characteristics

Mobility
crawler
Drilling unit
rotary
Machine weight

3.5 t, 4 t
(3.9 us ton, 4.4 us ton)

Motor power

55 kW
(74.78 hp)

Description

Max Width - 900 - 1.350 mm - 2.9 - 4.4 ft Mast Force - 1.200 - 2.200 mm - 3.9 - 7.2 ft Feed Force - 2.500 daN - 5,620 lbs Retract Force - 2.500 daN - 5,620 lbs Rotary Torque - 200 - 510 daNm - 1,475 - 3,761 lb*ft Rotary Speed Range - 80 - 560 rpm Clamp Range - 45 - 260 mm - 1.8 - 10.2 in
