Crawler drilling rig MC 6

rotaryhydraulic

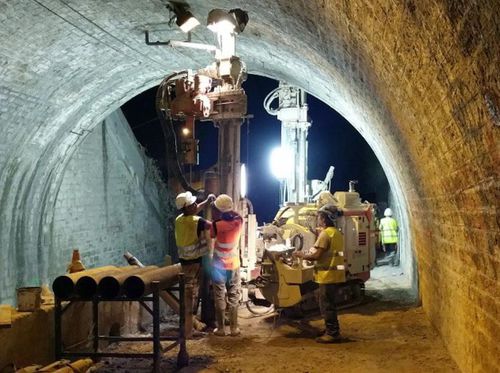

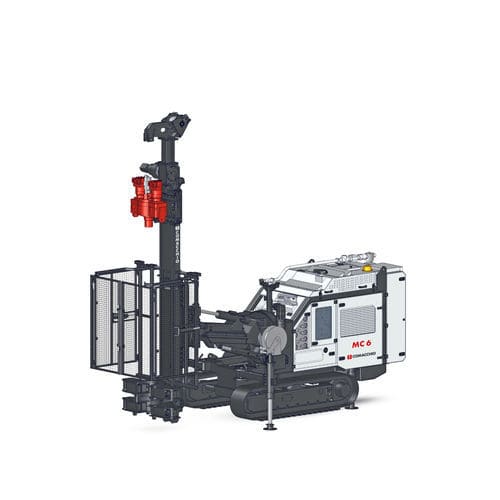

The MC 6 is a hydraulic drilling rig designed for the execution of ground engineering works in confined or low overhead spaces and difficult access jobsites, including inside buildings, basements and small tunnels. This is possible due to the rig’s compact size and wide range of allowable mast movements. In addition, the MC 6 carries an exceptionally powerful engine for its weight category, and combined with the machine’s advanced modular hydraulic circuits, this rig can achieve remarkably high performance standards. Also, the MC 6 can accommodate a wide range of accessories and is suitable for any type of rotary or rotary-percussive drilling. The machine can be equipped with hydraulic proportional servo- assisted controls or with the innovative Comacchio radio control system. Like all Comacchio machines, the MC 6 can be customized according to specific customer needs. Max Width - 1.100 - 1.600 mm - 3.6 - 5.2 ft Mast Feed - 900 - 3.200 mm - 3 - 10.5 ft Feed Force - 5.000 daN - 11,240 lbs Retract Force - 5.000 daN - 11,240 lbs Rotary Torque - 450 - 1.500 daNm - 3,319 - 11,432 lb*ft Rotary Speed Range - 80 - 380 rpm Clamp Range - 45 - 325 mm - 1.8 - 12.8 in
