Crawler drilling rig MC 6S

rotary

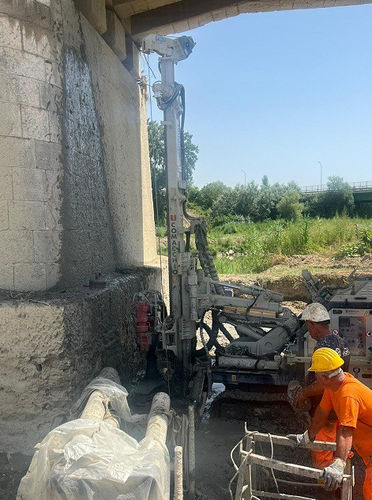

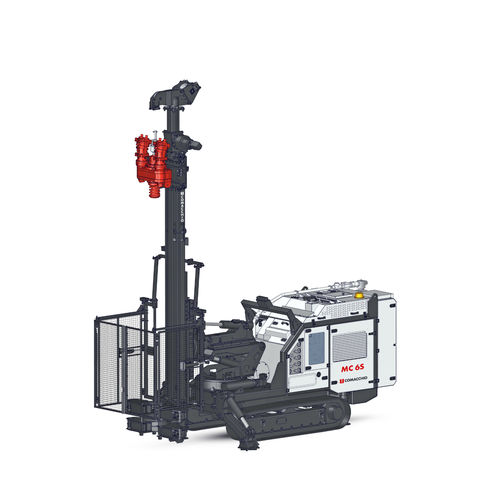

The MC 6 is an extremely compact and lightweight multipurpose drilling machine designed for easy mobilization, operation in tight spaces and limited access jobsites (for example inside buildings, shafts, cellars and small tunnels). The MC 6S features an advanced mast articulation system that allows the mast to be positioned or inclined to meet project requirements without any fuss or re-pinning. The fully articulated double-slew mast kinematics allows the MC 6S to cover the widest working area even in confined spaces. The MC 6S can be used for various applications: micropiles, anchors, self-drilling bars and earth stabilisation in general, ensuring maximum ease and safety of use in limited space conditions. The MC 6S is equipped with the Comacchio radio control system which allows you to control all its functions remotely. Max Width - 1.100 - 1.600 mm - 3.6 - 5.2 ft Mast Feed - 900 - 3.200 mm - 3 - 10.5 ft Feed Force - 5.000 daN - 11,240 lbs Retract Force - 5.000 daN - 11,240 lbs Rotary Torque max. - 850 - 1.350 daNm - 6,270 - 9,960 lb*ft Rotary Speed max. - 220 - 380 rpm Clamp Range - 45 - 325 mm - 1.8 - 12.8 in
