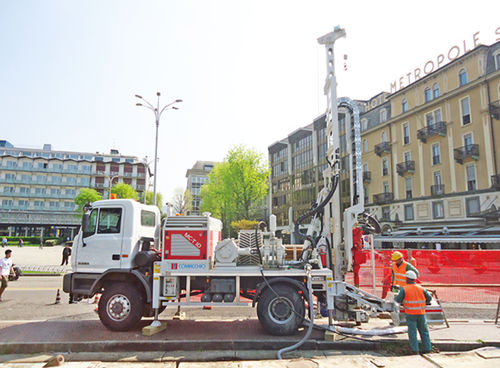

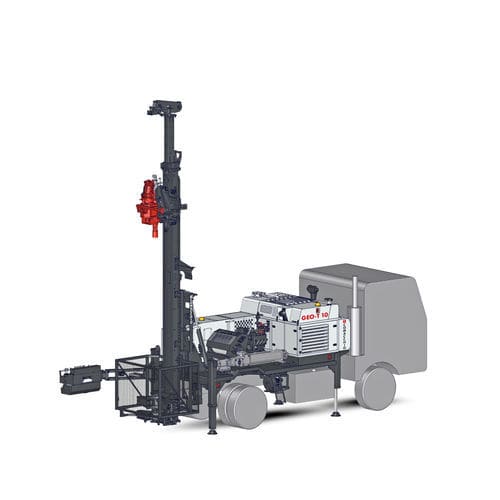

Truck-mounted drilling rig GEO-T 10rotary
Add to favorites
Compare this product
Characteristics
- Mobility
- truck-mounted
- Drilling unit
- rotary
- Machine weight
8 t, 8.5 t
(8.8 us ton, 9.4 us ton)- Motor power
119 kW, 140 kW
(161.79 hp, 190.35 hp)
Description
Max Width - 2.550 mm - 8' 4''
Mast Feed - 4.000 mm - 13' 1''
Feed Force - 6.500 daN - 14,613 lbs
Retract Force - 9.500 daN - 21,357 lbs
Rotary Torque - 630 - 2.000 daNm - 4,646 - 14,751 lb*ft
Rotary Speed Range - 80 - 980 rpm
Clamp Range - 45 - 365 mm - 1'' 3/4 - 14'' 3/8
Catalogs
Geotechnical equipment
16 Pages
