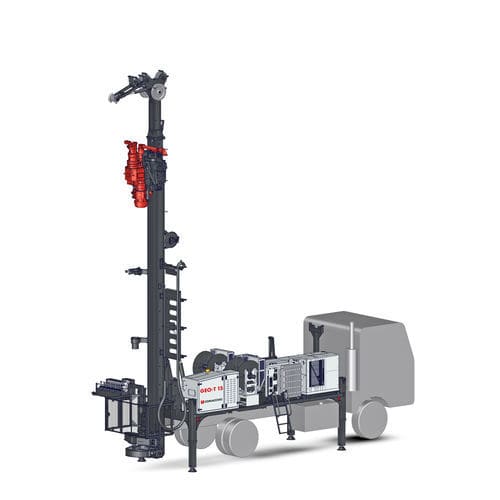

Truck-mounted drilling rig GEO-T 15rotary
Add to favorites
Compare this product
Characteristics
- Mobility
- truck-mounted
- Drilling unit
- rotary
- Machine weight
7.5 t, 10 t
(8.3 us ton, 11 us ton)- Motor power
147 kW, 168 kW
(199.86 hp, 228.42 hp)
Description
Max Width - 2.500 mm - 8.2 ft
Mast Feed - 4.000 - 6.400 mm - 13.1 - 21.0 ft
Feed Force - 7.000 daN - 15,737 lbs
Retract Force - 15.000 daN - 33,721 lbs
Rotary Torque - 715- 2.800 daNm - 5,274 - 20,652 lb*ft
Speed Rotary Range - 150 - 900 rpm
Clamp Range - 45 - 360 mm - 1.8 - 14.2 in
Catalogs
Geotechnical equipment
16 Pages
