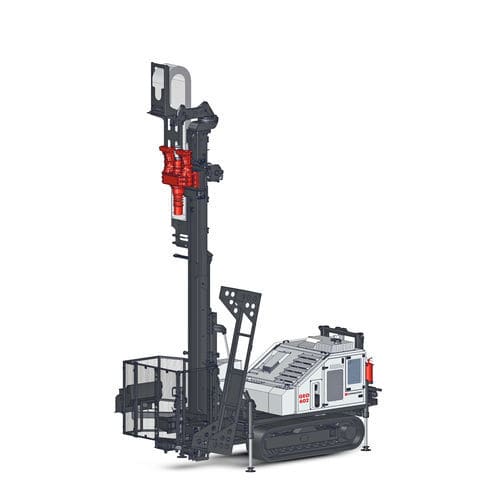

Crawler drilling rig GEO 602rotary
Add to favorites
Compare this product
Characteristics
- Mobility
- crawler
- Drilling unit
- rotary
- Machine weight
9 t, 10 t
(9.9 us ton, 11 us ton)- Motor power
115 kW, 119 kW
(156.36 hp, 161.79 hp)
Description
Max Width - 1.600 - 2.300 mm - 5.2 - 7.5 ft
Mast Feed - 4.000 mm - 13.1 ft
Feed Force - 6.500 daN - 14,613 lbs
Retract Force - 9.500 daN - 21,357 lbs
Rotary Torque - 450 - 2.400 daNm - 3,319 - 17,700 lb*ft
Rotary Speed Range - 70 - 980 rpm
Clamp Range - 45 - 320 mm - 1.8 - 12.6 in
