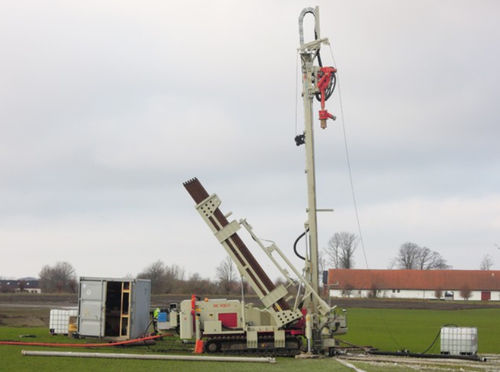

Geotechnical drilling rig GEO 900

geothermalwater wellcrawler

The GEO 900 was conceived as a mid-size hydraulic drilling rig for geotechnical works. This rig incorporates a particularly flexible design and accommodates many different accessories, which has allowed for an extremely diversified technical evolution of the GEO 900 over the years, including fields other than geotechnical engineering. Currently the GEO 900 is one of the most versatile models of the Comacchio line covering a large spectrum of activities related to geotechnical investigation, water well drilling and the installation of geothermal borehole heat exchangers carried out with single string drilling (both with mud circulation and a down-the-hole hammer). Max Width - 2.000 - 2.400 mm - 6.5 - 7.8 ft Mast Feed - 4.000 - 8.000 mm - 15.7 - 26.2 ft Feed Force - 7.000 - 19.500 daN - 15,740 - 43,840 lbs Retract Force - 15.000 - 19.500 daN - 33,720 - 43,840 lbs Rotary Torque - 1.300 - 3.200 daNm - 9,588 - 23,602 lb*ft Rotary Speed Range - 20 - 290 rpm Clamp Range - 45 - 360 mm - 1.8 - 14 in
