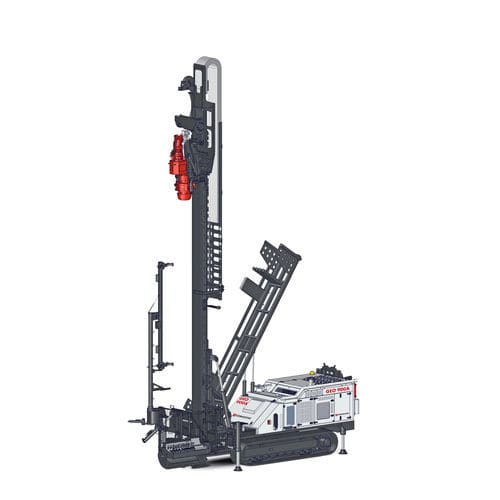

Crawler drilling rig GEO 900 Arotary
Add to favorites
Compare this product
Characteristics
- Mobility
- crawler
- Drilling unit
- rotary
- Machine weight
16 t, 19.5 t
(17.6 us ton, 21.5 us ton)- Motor power
126 kW, 160 kW
(171.31 hp, 217.54 hp)
Description
Max Width - 2.000 - 2.400 mm - 6.5 - 7.8 ft
Mast Feed - 4.000 - 7.000 mm - 13.1 - 23 ft
Feed Force - 7.000 - 10.000 daN - 15,740 - 22,480 lbs
Retract Force - 15.000 - 20.000 daN - 33,720 - 44,960 lbs
Rotary Torque - 1.300 - 3.100 daNm - 9,588 - 22,864 lb*ft
Rotary Speed Range - 48 - 290 rpm
Clamp Range - 45 - 430 mm - 1.8 - 16.9 in
