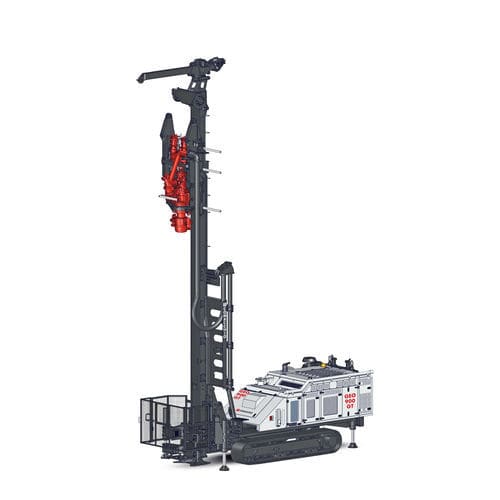

Geothermal drilling rig GEO 900 GT

crawlerrotary

The GEO 900 GT version was designed to meet the needs of customers working in the field of geothermal engineering who wish to utilize a double head drilling system. This rig is particularly suitable for the installation of geothermal borehole heat exchangers in loose rocky terrains and soft soils such as clays and sands. Equipped with a more powerful mast featuring a gear reducer feeding system and increased pull up force, the GEO 900 GT incorporates a double head kit which allows for the continuous movement and the counter-rotation of the two strings (rods and casings), providing a torque output on the lower rotary head up to 3600 daNm. The GEO 900 GT can be equipped with a wide choice of water and mud pumps, used for flushing spoils, and with rod and casing handling systems that facilitate the loading / unloading operations on site, minimizing processing times. Max Width - 2.000 - 2.400 mm - 6.5 - 7.8 ft Mast Feed - 4.000 - 5.000 mm - 13.1 - 16.6 ft Feed Force - 7.000 / 19.500 daN - 15,740 / 43,840 lbs Retract Force - 15.000 / 19.500 daN - 33,721 / 43,840 lbs Rotary Torque - 1.100 daNm 3.600 daNm - 8,100 lb*ft 26,550 lb*ft Rotary Speed Range - 20 - 140 rpm Clamp Range - 45 - 360 mm - 1.8 - 14 in
