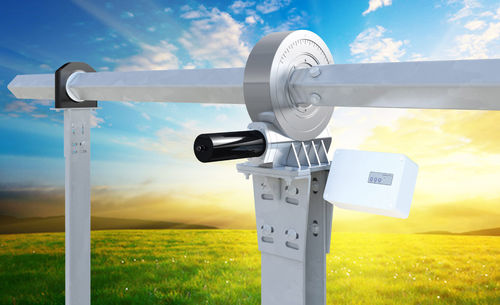

Single-axis solar tracker Sun Hunter 18AB

fixedPV

The Comal "Sun Hunter 18AB" horizontal single-axis system is easily adaptable, thanks to its flexibility characteristics, to the configuration of various photovoltaic fields, to achieve the goal of maximizing the power that each field can generate. The use of trackers of different lengths and the ability to independently set each tracker's angles, even at the end of the back-tracking, allows you to achieve the above goal. The tracker is characterized by two components: the structural component and the electronic component. System type: Horizontal single-axis tracking, Permitted terrain slope: ≤ 9% N / S, The adjustable roll angle of tracker: +/- 55 ° (max 60 °), Compliant with the use of double-sided photovoltaic modules (back-tracking), Materials used in the structures: S275 JOH, S355 JOH hot-dip galvanized, Sendzimir Z450, Motor/controller power supply: Self-production with 30 W panel and 24V 6 Ah battery. Communication system: wireless based on ZigBee protocol. Built-in test equipment (BITE) for functional check (inclinometer). Web interface for the operational control of the trackers and sending commands to them. The structure can be adapted to the customer's different configurations up to a maximum of 84 panels. Each tracker's electronic component consists of controllers and a concentrator that communicate with each other through a radio mesh network.
