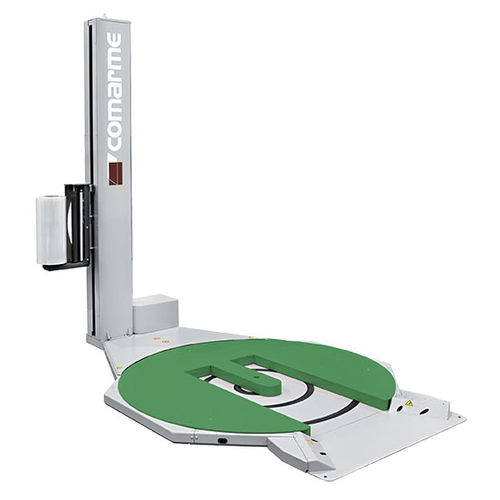

Turntable stretch wrapper RONDA BETA PLUS TPautomaticwith mechanic brakingpallet
Add to favorites
Compare this product
Characteristics
- Type
- turntable
- Operating mode
- automatic
- Braking type
- with mechanic braking
- Product applications
- pallet
- Other characteristics
- with E-shaped platform
- Height
2,365 mm
(93 in)- Width
1,970 mm
(78 in)- Length
2,300 mm
(91 in)- Maximum wrapping height
2,150 mm
(84.65 in)- Maximum pallet length
1,200 mm
(47.24 in)- Maximum pallet width
800 mm, 1,000 mm
(31.5 in, 39.37 in)- Maximum pallet weight
1,200 kg, 1,500 kg
(2,645.55 lb, 3,306.93 lb)- Table diameter
1,500 mm, 1,640 mm, 1,650 mm
(59.06 in, 64.57 in, 64.96 in)
Description
Ronda Beta Plus Transpallet version with the possibility to modify the in-feed entrance in any moment
TECHNICAL FEATURES:
> Load height sensing photocell.
> Start/stop of rotation in phase adjustable by inverter.
> Speedof carnage separated adjustable in upwards & downwards movement.
> Beeper at cycle start and phase stopping at cyde end.
> Emergency stop button following CE norms.
> Button to reset machines, functions following CE norms.
> Stop and rise of carriage with sensor in basement.
PARAMETERSADJUSTABLE FROM CONTROL PANEL
> Bottom&top pallet wrapping rounds separated.
> Rotating speed adjustable.
> Spool carnage upward & downward speed separated.
> Photocell sensing delay.
> Push buttons for manual movement machine.
> Height of pallet (without photocell).
BASE CYCLES SELECTABLE FROM PANEL:
> Cycle ascend & descend.
> Cycle only ascend/descend.
> Manual cycle.
FUNTIONS ACTIVATED ON BASE CICLE:
> Top sheet function.
> Wrapping cycle with height meter (without photocell).
> Wrapping cycle with reinforcement wraps with manual button.
> Cycle in layers.
