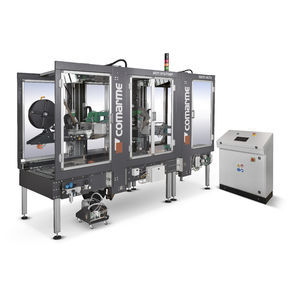

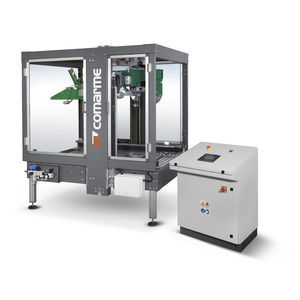

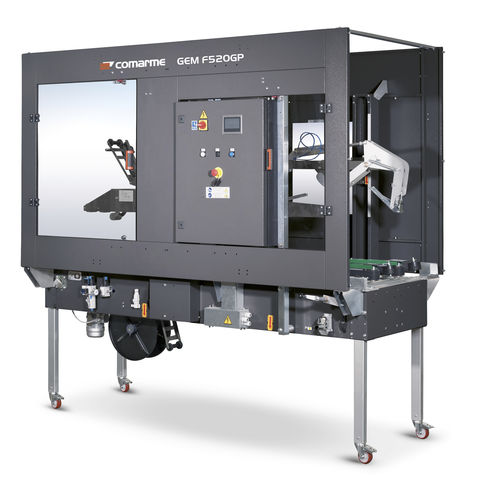

Multi-flap carton sealer GEM F520 GP

automaticgummed paper

Automatic uniform gummed paper case sealer with flap closing device GEM F520-GP - Manual regulation of box size by handwheel - Top carriage adjustment for box height motorised - Lateral side drive belts - Drive belts speed 18 mt/min either adjustable - Automatic top flaps closing device - Top & Bottom taping head with autonomous water tank - Adjustable humidification - Pneumatically controlled cutting device - Adjustable pressure rubber rollers to press the gummed paper onto the boxes - Pressure can be changed depending on the contents and/or thickness of the boxes - Final long brush for additional pressure on the box surface for a perfect adhesion - Gummed paper width adjustable: 50-80mm, overlap adjustable 40-80 mm - Electric box with Siemens PLC S7 1200 model - Digital control panel Kite P07 4” model - Belts start / stop per each single sealing cycle GUMMED PAPER SEALING ADVANTAGES: • Uniquelly 100% recyclable • Anti-theft protection • Dust protection • Stability & durability OPTIONALS : • Tape roll end indicator • Tape application control • Water level indicator • Audio - visual alarms • Boxes counter • Top & bottom sealing disabling
