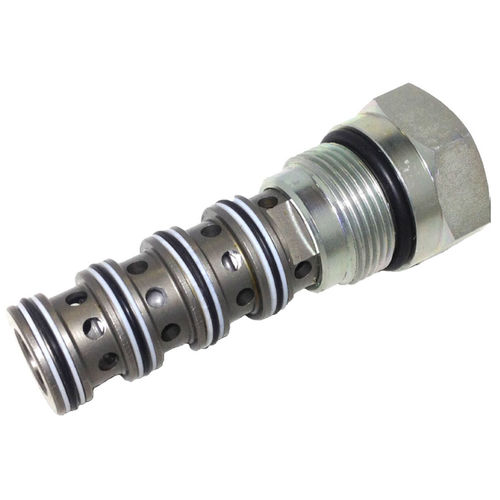

Spool hydraulic directional control valve DV15-P5-24-01

hydraulically-operatedpilot4/2

The DV15-P5-24-01 is a normally open, 5-ported piloted directional control valve, 2-position, 4-way, 15-size. It is shifted by applying pressure to port 5. In the normal position, flow is allowed between ports 3 and 4, and ports 2 to 1. During transition, all ports are closed. When the valve is fully shifted, flow is allowed between ports 2 and 3, and ports 4 to 1. Applications This spool-type valve is primarily used in mobile and industrial applications for controlling the direction of the flow in a circuit, like motors or cylinders. The valve can be piloted with many 2-way valves including solenoid, sequence, relief or manual valves with the internal pilot drain orifice option. Alternatively, it can also be piloted with a 2-position, 3-way solenoid valve using the internal pilot drain plug option.
