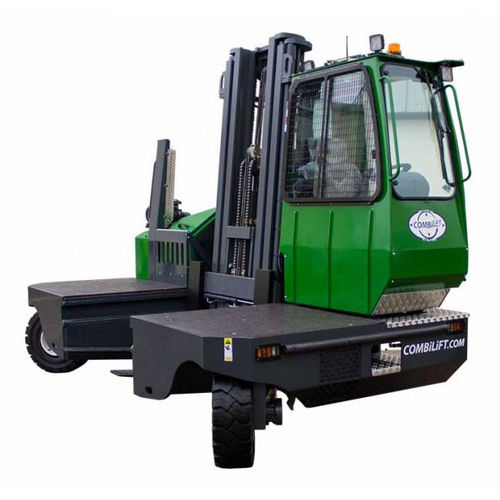

Multi-directional side loader SL5000
electricdieselLPG

multi-directional side loader
multi-directional side loader
multi-directional side loader
multi-directional side loader
multi-directional side loader
multi-directional side loader
multi-directional side loader
Add to favorites
Compare this product


Characteristics

Motor type
electric, diesel, LPG
Operator
ride-on
Applications
handling, VNA
Other characteristics
multi-directional, 3-wheel, counterbalanced
Carrying capacity

5,000 kg
(11,023.1 lb)

Lifting height

4,040 mm
(159.06 in)

Overall width

2,000 mm
(78.7 in)

Load center distance

600 mm
(23.6 in)

Weight without load

9,500 kg
(20,943.9 lb)

Height of mast when lowered

3,035 mm
(119.5 in)

Overall height with mast raised

5,150 mm
(202.8 in)

Length to fork face

800 mm
(31.5 in)

Ground clearance under mast with load

300 mm
(11.8 in)

Ground clearance at center of wheelbase with load

405 mm
(15.9 in)

Travel speed

25 km/h
(15.5 mph)

Gradeability

15 %

Rated output

75 kW
(102 hp)

Description

The 3 wheel sideloader forklift designed for the safe, space saving and productive handling of long and bulky loads. The hardworking, versatile design of Combilift’s multi-directional range combines the advantages of a counterbalanced forklift, side loader and very narrow aisle (VNA) truck in one vehicle, for a complete solution with electric, diesel or lpg engines. Suitable Industries • Aluminium • Building Materials • Logistics • Metals • Plastics • Steel • Timber • Warehousing Special Features • Rubber Mounted Half Open Cabin • Multi Directional Operation • 3 Wheel Hydrostatic Drive • Load Sensing Steering • 4 Way Lever Positioning of Wheels • Hydraulic Oil Cooler
