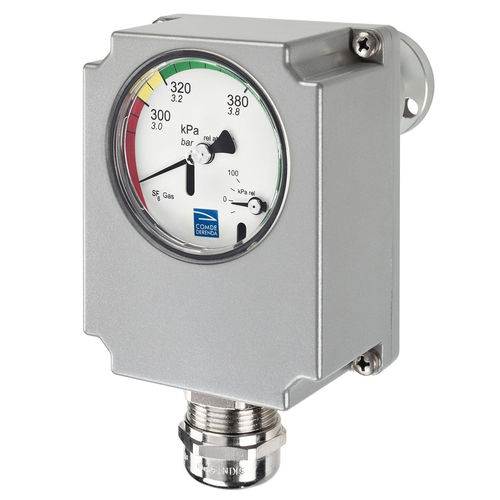

Density monitoring device Densistat D56 / D56i0

pressureSF6

Density monitor for SF6 gas-insulated high-voltage circuit breakers The Densistat D56 / D56i0 is suitable for indoor and outdoor use. It incorporates an analog gauge for relative pressure, referenced to 20 °C. The type D56i0 also features a zero pressure indicator. Microswitches inside the device respond reliably to any decreases in the density and pressure of the SF6 insulating gas. The pressure connection is either straight or angled (several options are available). Key Features - Pressure range 0 to 10 bar relative - Various pressure connectors available - High switching accuracy and long-time stability - Rugged design (IP 67/IP X5) - Up to 4 microswitches - Analog pressure gauge, can be calibrated - Additional zero pressure dial (D56i0)
