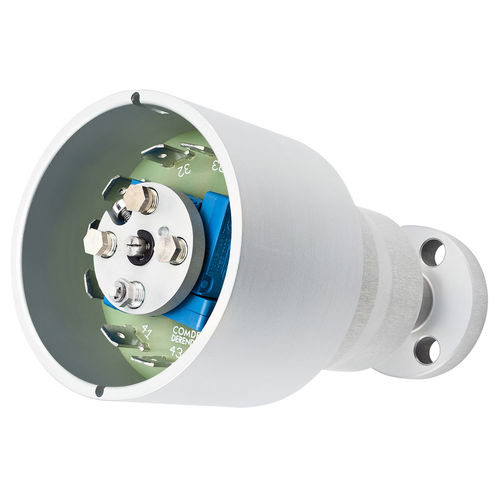

Density monitoring device TS

pressureSF6

Density monitor for SF6 gas-insulated high-voltage circuit breakers The gas density monitor TS continuously monitors the density of the insulating gas SF6. Up to five microswitches inside the device respond reliably to any decreases in the density and pressure of the SF6 insulating gas. The operating points can be set at the factory according to the customer’s requirements. Key Features - Pressure range 0 to 10 bar relative - High switching accuracy and long-time stability - Rugged design (IP 10) - Up to 5 microswitches - Concentric pressure connector
