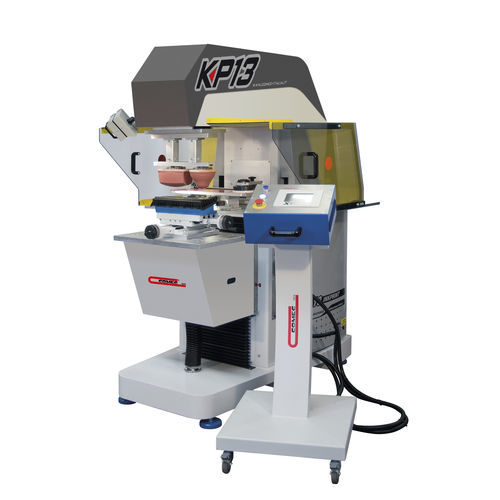

Pad printing machine with open ink cup INKPRINT KP13 1C SLIDE

automaticmonochromeelectropneumatic

The SLIDE type is available for some machines of the series KP and KE, as the KP-08 and KP 13 and allows printing up to 2 colors on objects of medium and large size, also on uneven surfaces. This important result is achieved thanks to an updated conception of the printing, which involves the horizontal movement of inkcups and allows in this way to have a greater print area: the space needed to make larger prints on larger surfaces. The SLIDE set supports inkwells from 60 to 250mm in diameter (which means that we can get a print up to 225x700mm). Even the piece holder is designed to make room for large-scale items, for fast centering of the print area. SLIDE machines have the best equipment of Comec Italia machines: management software with intuitive and ergonomic user interface, manual adjustment of the cliché  slots, mechanical configuration for the automated lines, opportunity to install several optional devices specifically designed for the various printing needs, such as automatic pad cleaning device, jet of hot air, various feeders.
