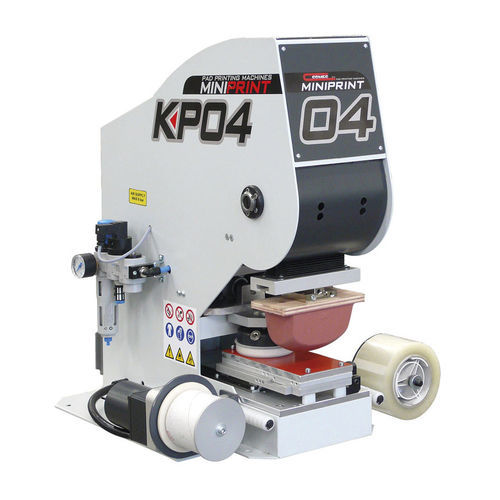

Pad printing machine with hermetic ink cup MINIPRINT K04 1C

automaticmonochromeelectropneumatic

KP04 is an electropneumatic pad printing machine 1 to 4 colors for printing in horizontal at 90 °. This orientation, that overturns the traditional concept of pad printing, which occurs vertically, is aimed to meet the needs of automated lines allowing the printing of the logo on the product in production, without changing the position of the workpiece and without adding additional steps to workflow. The machine operates with hermetic inkcups and ceramic rings up to 90 mm diameter and clichés of 100×200 mm. It is able to work at very high cycles and has a steel structure that ensures stability and precision of movements. It can be equipped with automatic and programmable pads cleaning. The control panel, capable of managing all the operations of the machine, is positioned on the rear side. Inputs and outputs are fitted for easy connection to existing lines and automation.
