Pad printing machine with hermetic ink cup INKPRINT KE07

automatic4-colorelectromechanical

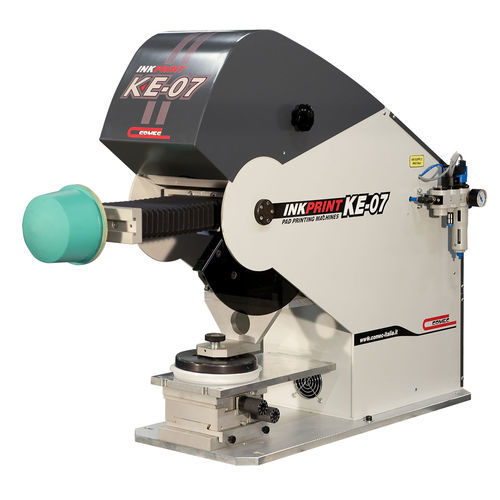

KE07 is a completely electromechanical pad printing machine 1 to 4 colors for printing horizontally at 90 °. This orientation, that overturns the traditional concept of pad printing, which occurs vertically, is aimed to meet the needs of automated lines allowing the printing of the logo on the product in production, without changing the position of the workpiece and without adding additional steps to workflow. The rotation of the pad takes place thanks to a brushless motor, and this allows to obtain prints in reduced times with respect to the electro-pneumatic version of the same machine (KP07). The machine operates with hermetic inkcups and ceramic rings up to 160 mm diameter and clichés of 180×360 mm. It is able to work at very high cycles and has a steel structure that ensures stability and precision of movements. It can be equipped with automatic and programmable pads cleaning device. KPE 07 is equipped with a digital programmable microprocessor that can handle all of its operations. The control panel is positioned on the rear side. Inputs and outputs are fitted for easy connection to existing lines and automation.
