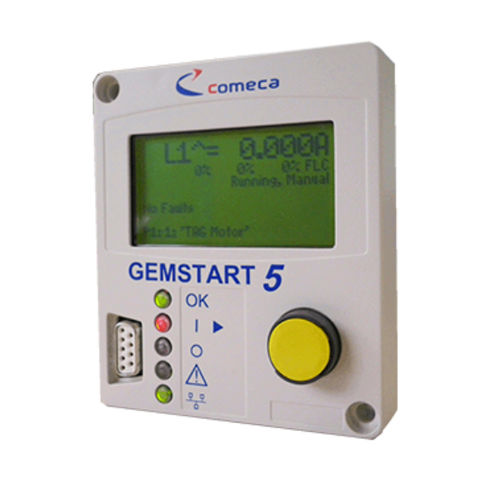

Current protection relay GEMStart 5®
voltagemotorRS485

current protection relay
current protection relay
current protection relay
current protection relay
current protection relay
Add to favorites
Compare this product


Characteristics

Measured/monitored value
voltage, current
Applications
motor
Communication
RS485, Modbus RTU, PROFIBUS
Trigger voltage

24 V

Max.: 240 V

Min.: 24 V

Description

GemStart5® is a motor protection relay perfectly dedicated to protect, control and monitor electrical motors and their applications. Discover more about its functionalities. Operation: - The most cost-effective solution - Reporting of operating statistics - Warning and breakdown system - Auto-restart functionality - MTBF > 600 000h - Event, default and trip histories - Maintenance Intuitive programming software: - Maintain the motor and its application - Event, default and trip histories - Auto-restart functionality - U, I, P, Q, cos ø reporting information - Preventive and predictive maintenance - Online setting modifications - MTTR : few minutes only - Studies & Integration Adapted for LV and MV applications: - Large choice of motors control systems - On-site cabling cost-savings - Electrical drawings standardisation - Engineering time decreased - Configure, monitor and control Use GemPro free software: - Connection to the GemSart5 via a standard RS232 direct cable on the LCD front face SUB-D9 pin connector - Connection to the GemSart5 via Bluetooth - Ethernet connectivity
