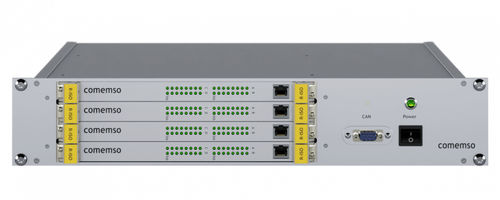

Multi-channel battery simulator BCS R-ISO

BMS test

The 2-channel R-ISO-Check card emulates the insulation resistance in the high voltage range between DC+ to PE and DC- to PE. The resistance value can be set in the range of 20 kOhm to 65 MOhm. This function is important because the BMS has to detect a possible dangerous isolation fault/connection of the battery with the chassis or other components outside the battery in order to pretect life and limb.
