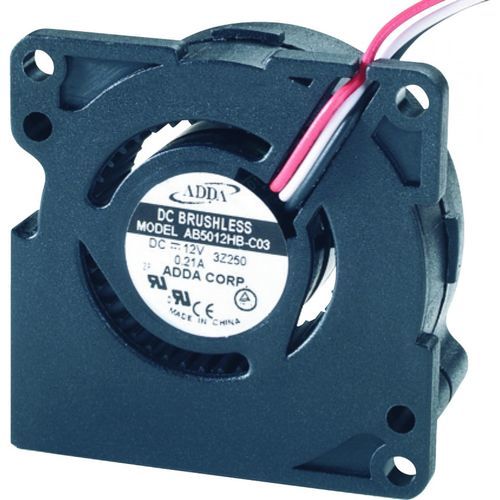

Air blower BLAB1212DXcentrifugalsingle-stagewire
Add to favorites
Compare this product
Characteristics
- Type
- air
- Technology
- centrifugal
- Number of stages
- single-stage
- Applications
- wire, glass
- Norms
- UL
- Flow
0.06 m³/min, 0.71 m³/min, 0.88 m³/min, 0.95 m³/min
(2.119 ft³/min, 25.073 ft³/min, 31.077 ft³/min, 33.549 ft³/min)- Operating pressure
Max.: 0 Pa
(0 psi)Min.: 0 Pa
(0 psi)- Nominal power
Max.: 13,920 W
(18.926 hp)Min.: 6 W
(0.008 hp)- Sound level
47 dB, 48 dB, 49 dB, 53 dB, 55 dB
- Weight
251 g
(8.85 oz)
Description
Frame
Black PBT UL94-V0 glass filled
Impeller
Black PBT UL94-V0 glass filled
Lead wires
UL 1007 AWG 24
Bearing
Ball bearings
Hypro Bearings
Insulation resistance
10 MOhm lead wire/frame (DC 500 V)
Dielectric strength
5 mA Max at 1500 VAC for 1 min. lead wire/frame
Operating temperature
-10°C / +75°C normal
Life expectancy
Ball bearing
50.000 h at 25°C relative humidity 60% ± 20%
Hypro Bearings
> 50.000 h at 25°C relative humidity 65% ± 20%
