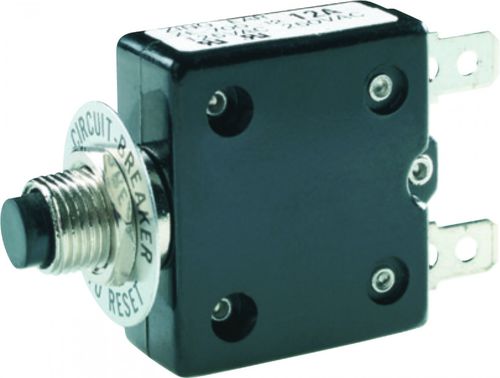

Metal thermal protector K700

ELECTRICAL SPECIFICATIONS Dielectric Strength 1500VAC / 1 min. Interrupting Capacity 125VAC x 1000A, 250VAC x 200A Insulation Resistance >500M Ohm Calibration 25°C – 100% In, Continuosly Carried 25°C – tra 101% e 145% In, May trip or not 25°C – 150% In, Trip within 1h 25°C – 200% In, Trip within 40 second 25°C – 300% In, Trip within 10 second Contact Endurance: 125VAC x 150% In, 500 cycles Reset: Manual reset Note Hex nut and label included with termal protection Optional metal ring available on request Package 100/500 3A - 30A 125/250V AC - 5A, 10A, 15A, 20A 125/250V AC 50V DC
