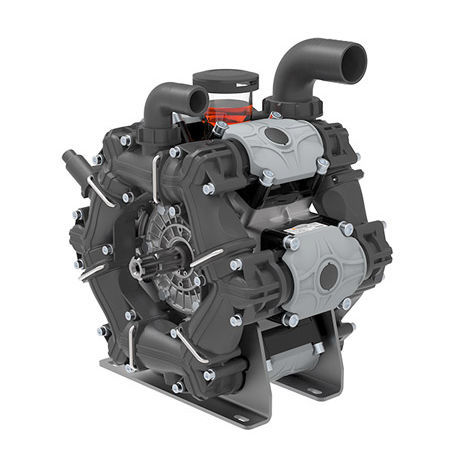

Diaphragm pump BPS 300 waterfor chemicalsstationary
Add to favorites
Compare this product
Characteristics
- Technology
- diaphragm
- Fluid
- water, for chemicals
- Mobility
- stationary
- Domain
- agriculture
- Applications
- control, spray
- Material
- aluminum, plastic
- Other characteristics
- compact, low-pressure, coated
- Flow
Min.: 219 l/min
(57.85368 us gal/min)Max.: 299 l/min
(78.98744 us gal/min)- Pressure
5 bar, 10 bar, 15 bar, 20 bar
(72.519 psi, 145.038 psi, 217.557 psi, 290.075 psi)- Power
Min.: 1.7 kW
(2.31 hp)Max.: 11.3 kW
(15.36 hp)- Length
428 mm
(17 in)- Width
339 mm
(13.35 in)- Height
462 mm
(18.19 in)- Weight
50 kg
(110.23 lb)
Description
6 diaphragms in NBR and Desmopan® (Viton available on request).
Parts in contact with spray liquid: plastic coated aluminium and poliamide.
On request: pressure accumulator, safety valve and PTO protection.
