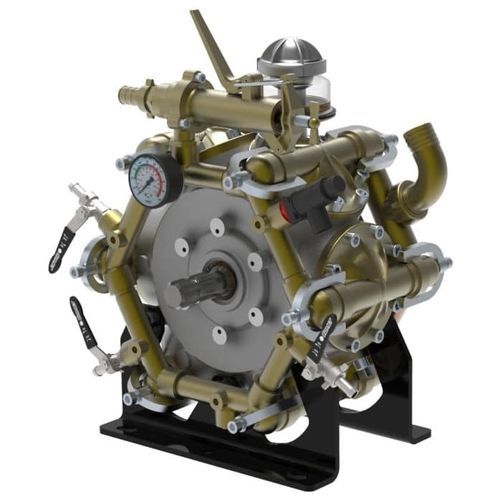

Water pump IDS 2200 – 2600 HDdiaphragmstationaryindustrial
Add to favorites
Compare this product
Characteristics
- Fluid
- water
- Technology
- diaphragm
- Mobility
- stationary
- Domain
- industrial
- Applications
- for control, spray
- Material
- brass
- Other characteristics
- standard
- Flow
Max.: 259 l/min
(68.42056 us gal/min)Min.: 158 l/min
(41.73918 us gal/min)- Pressure
20 bar, 30 bar, 40 bar, 50 bar
(290.075 psi, 435.113 psi, 580.151 psi, 725.189 psi)- Power
Max.: 23.6 kW
(32.09 hp)Min.: 1.3 kW
(1.77 hp)- Length
468 mm
(18 in)- Width
349 mm
(13.74 in)- Height
515 mm
(20.28 in)- Weight
76 kg
(167.55 lb)
Description
6 diaphragms in NBR (Desmopan® and Viton available on request).
Parts in contact with spray liquid: brass.
Standard: pressure accumulator, safety valve, oversized mounting brackets, premium German-made bearings.
On request: PTO protection.
Available versions with control valve and pressure gauge and versions without control valve and without pressure gauge.
