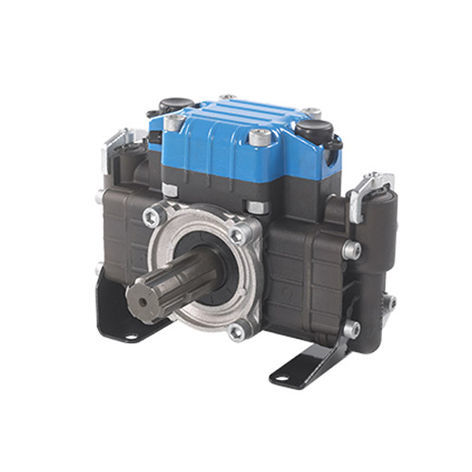

Diaphragm pump BP 20/15
for chemicalsstationaryagriculture

Diaphragm pump - BP 20/15 - COMET Spa - for chemicals / stationary / agriculture
Diaphragm pump - BP 20/15 - COMET Spa - for chemicals / stationary / agriculture
Diaphragm pump - BP 20/15 - COMET Spa - for chemicals / stationary / agriculture - image - 2
Diaphragm pump - BP 20/15 - COMET Spa - for chemicals / stationary / agriculture - image - 3
Diaphragm pump - BP 20/15 - COMET Spa - for chemicals / stationary / agriculture - image - 4
Diaphragm pump - BP 20/15 - COMET Spa - for chemicals / stationary / agriculture - image - 5
Diaphragm pump - BP 20/15 - COMET Spa - for chemicals / stationary / agriculture - image - 6
Diaphragm pump - BP 20/15 - COMET Spa - for chemicals / stationary / agriculture - image - 7
Diaphragm pump - BP 20/15 - COMET Spa - for chemicals / stationary / agriculture - image - 8
Add to favorites
Compare this product


Characteristics

Technology
diaphragm
Fluid
for chemicals
Mobility
stationary
Domain
agriculture
Applications
control, spray
Other characteristics
low-pressure
Flow

Max.: 21.9 l/min
(5.78537 us gal/min)

Min.: 13 l/min
(3.43424 us gal/min)

Pressure

5 bar, 10 bar, 15 bar
(72.519 psi, 145.038 psi, 217.557 psi)

Power

Max.: 0.61 kW
(0.83 hp)

Min.: 0.1 kW
(0.14 hp)

Length

260 mm
(10 in)

Width

155 mm
(6.1 in)

Height

185 mm
(7.28 in)

Weight

7.2 kg
(15.87 lb)

Description

2 diaphragms in NBR (Desmopan® or Viton available on request). Parts in contact with spray liquid: anodized aluminium. Standard: pressure accumulator. On request: safety valve and PTO protection.
