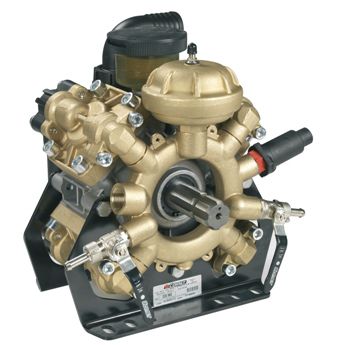

Water pump IDS 960 diaphragmstationaryindustrial
Add to favorites
Compare this product
Characteristics
- Fluid
- water
- Technology
- diaphragm
- Mobility
- stationary
- Domain
- industrial
- Applications
- high-pressure, spray
- Material
- brass
- Other characteristics
- standard
- Flow
Max.: 94 l/min
(24.83217 us gal/min)Min.: 70 l/min
(18.49204 us gal/min)- Pressure
20 bar, 30 bar, 40 bar, 50 bar
(290.075 psi, 435.113 psi, 580.151 psi, 725.189 psi)- Power
Max.: 8.5 W
(0.01 hp)Min.: 0.5 W
(0 hp)- Length
350 mm
(14 in)- Width
268 mm
(10.55 in)- Height
334 mm
(13.15 in)- Weight
30.3 kg
(66.8 lb)
Description
4 diaphragms in NBR (Desmopan® and Viton available on request).
Parts in contact with spray liquid: brass.
Standard: pressure accumulator and safety valve.
On request: PTO protection
