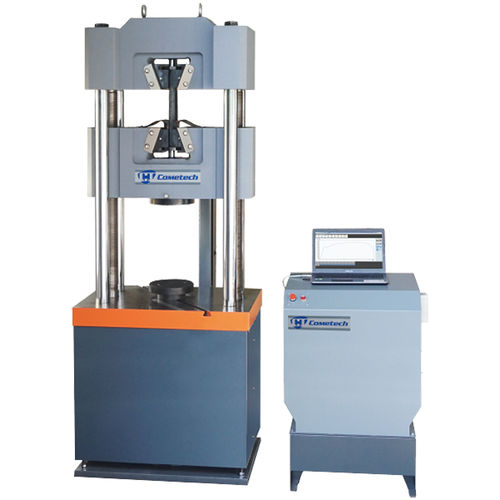

Universal testing machine QC-958

compressiontensilebending

Description This series is capable of tests with higher capacity. Tests conform to standards such as ASTM, ISO, JIS, GB. The hydraulic control offers constant stress, strain and speed. Its rigid and solid structure stabilizes the test and reduces corrosion. Standard accessories are tensile, compression and bending grips, suitable for metal, composite material, architecture industry. The precise result and control meet user’s requirement. The separated design of mainbody and controller reduces technical problems such as electronic interference to prolong the machine’s life. The M2F system is capable of performing various tests conforming to different standards. Keywords: Hydraulic Tensile Testing Machine, Hydraulic test equipment, Hydraulic Universal Testing Machine,Computerized Hydraulic Tensile/ Compression Tester, 30 ton Universal Testing Machine. Specifications Max. capacity 300kN Units Force: gf, kgf, lbf, N, kN, ozf, tonf(SI), ton(long), tonf(short) Stress: Kpa, Mpa, psi, bar, mm-Aq, mm-Hg Length:m, cm, mm, ft, in Force Resolution 31 bits Force Precision 1/100,000 Stroke Resolution 0.01 mm Piston Stroke 200 mm Space Between Columns 440 mm Speed Range 0.5~50 mm/min Speed Precision ±2% Max. Distance Between Tensile Grips 620 mm Thickness of Flat Specimens 0~20 mm Diameter of Circle Specimens 10~32 mm Max. Distance Between Compression Platens 580 mm Compression Platen Size Ø 235 mm PC-Port RJ45 (TCP/IP) Motor type Servo hydraulic control Power Supply 3 phases 220 VAC or optional 3 phases 380V Dimension (mm) 680 x 520 x 2040 Electrical Cabinet (mm) 850 x 700 x 900 Weight 1700 kg Weight of Electrical Cabinet 220 kg
