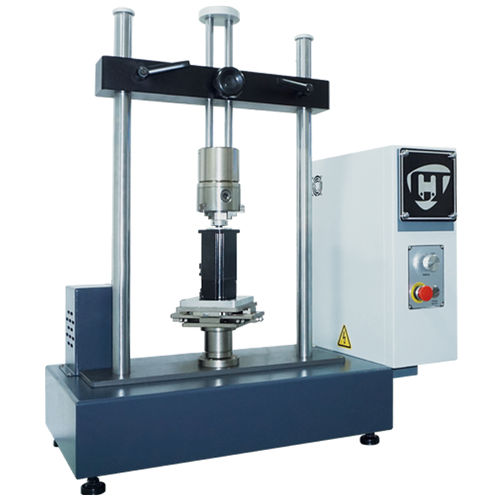

Force testing machine QC-41110D2

torqueautomaticfor packaging

Description The load cell is on machine top and the sample will be fixed at the fixture. The lower grips will rotate to test the torque force. User can see the test date directly on the display. Based on different sample test rotation speed required, user can set the speed directly to operate the torque test and analysis. During the test, it shows real-time data of torsion graph and direction and record the sample torsion completely in the spin. According to different test sample, the clamping grips will be customized. Key Words: Torque Test, Motor Torque Test, Hand Tool Torque, Torque Tester, Torque Test Machine Industry Electrical part, Motor, Bearing, Related transmission parts, Package Specifications Capacity 50N-m (Able to choose small capacity) Accuracy 1/10,000 Unit MN-m, kN-m, N-m, N-cm, mN-m, kgf-m, kgf-cm, kgf-mm, gf-cm, gf-mm, lbf-ft, lbf-in, ozf-in Power DC Motor Test Speed 5~50 r/min Data Sampling Rate Max. 1200Hz Test Range Max. Width 340mm Max. Height 500mm (without grips) Grip Type Customization based on user’s sample. Operation Display for stand alone operation. Software for options. PC Port 1.Real-time graph shows during the test. 2.User friendly test setting module. User can set up direction, speed, test end condition, etc. 3.Available to record the date during the test through USB. Feature 1. Equipped with Real-time graph shows during the test. 2. User friendly test setting module. User can set up direction, speed, test end condition, etc. 3. Available to record the date during the test through USB. Voltage Single Phase , AC100~240V Dimension 75 cm X 37 cm X 100 cm Weight 70 kg
